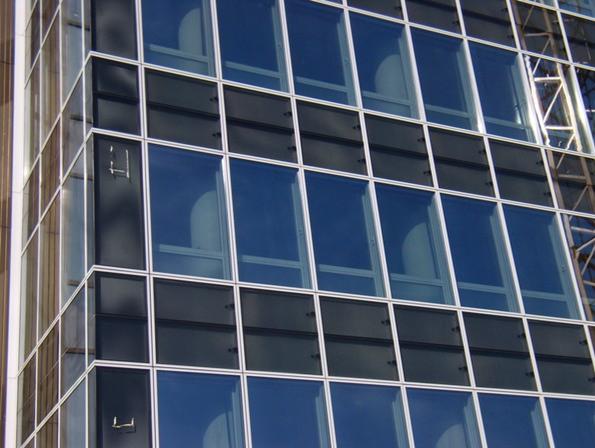

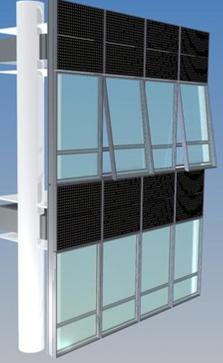

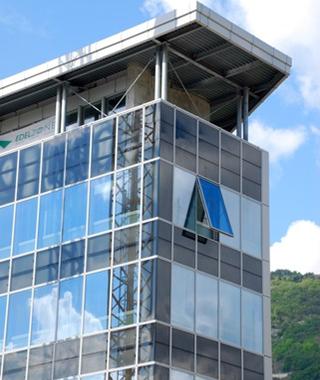

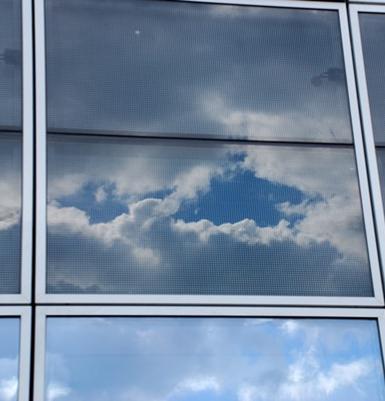

The A22 Highway Headquarter is located at the Trento Centro motorway exit. The architect designed the new extension of the existing building, characterized by a curtain wall system in the new building's façade. The east façade is composed of a full vision section with high insulation double glazing and PV glass, 20% semi-transparent, installed in correspondence of string courses. The energy derived is used to power the building's electrical services. This project was the first in which a photovoltaic system was installed inside a high performance, advanced technology, double skin façade.
Source: Tosoni Far System
| Project | A22 Autobrennero |   |
| Location | Trento (I) | |
| Latitude | 46° 08' | |
| Completion year | 2009 | |
| Architect | Studio Associato Giovanazzi | |
| Typology | Administration | |
| Category | Enlargement | |
| Surrounding | Urban |
|
| Technology | Thin-film | |
| Power installed | 7 | |
| Orientation | East | |
| PV Module |
n° 128 Würth Solar 1175x600 mm |
|
| Dimensions | 97 m2 | |
| Transparency |
Opaque |
