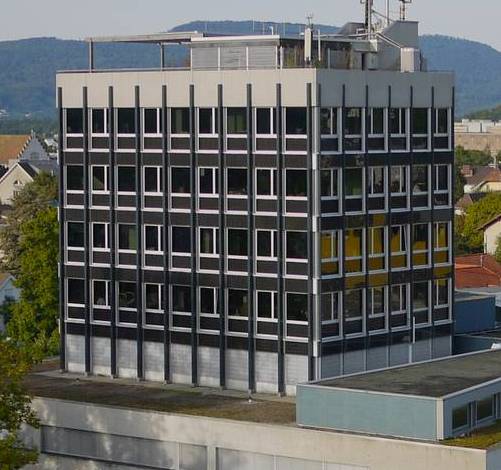

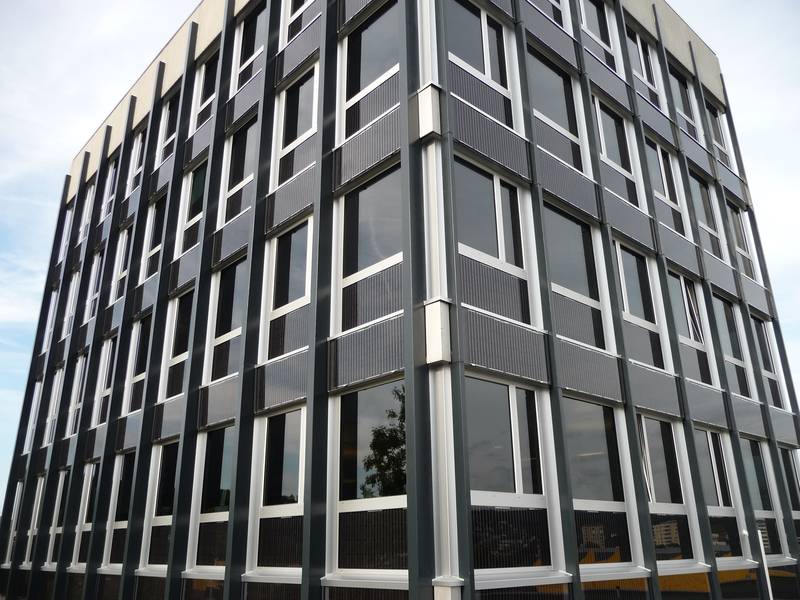

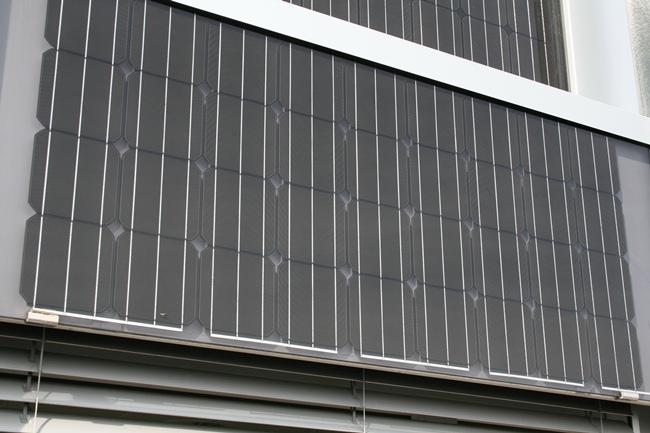

The requalification of the building in Suhr, site of a Swiss retailer of beauty products, was the main goal to reach high standards of energy performance. The old windows have been replaced with a wood-metal system including high-insulating glass and the sub-window integrates PV panels. The PV system is also installed in the bands between floors. Attention was placed to the shading by installing a bypass diode system that put out only single shaded cells.
Source: MGT esys; Energyoptimizer
| Project | Swiss House of Beauty |  |
| Location | Suhr (CH) | |
| Latitude | 47° 22' | |
| Completion year | 2012 | |
| Architect | - | |
| Typology | Administration | |
| Category | Renovation | |
| Surrounding | Urban | |
| Technology | Monocrystalline | |
| Installed Power | 16.8 kWp | |
| Orientation | South - East - West |
|
| PV Module | MGT-esys PV-ISO; MGT e-railing sys PV | |
| Dimension | 100 m2 | |
| Transparecy |
Opaque (fassade) |
