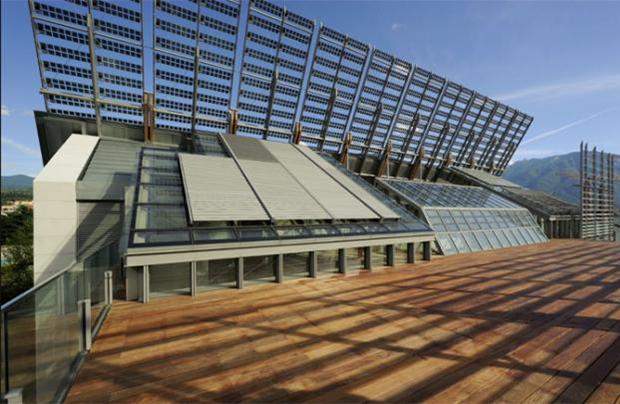

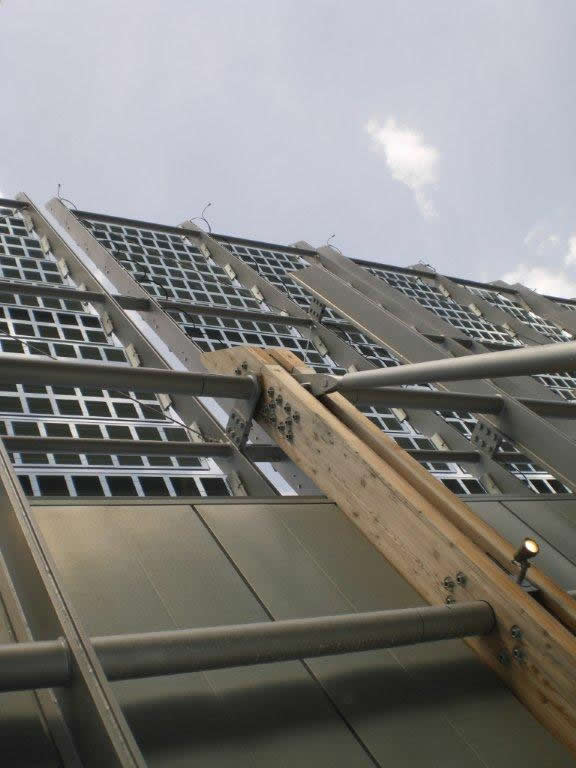

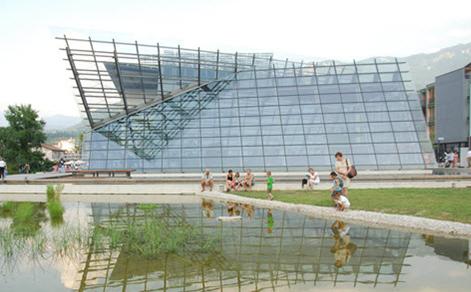

This intervention of MUSE (Museum of Science) by Renzo Piano is a part of transformation and urban renovation of ex-Michelin area in Trento. The building shape looks like surrounding mountains, with succession of volumes and empty spaces on a water mirror. The special building skin system, 60° sloped, integrates particular customized PV panels, specially made for this project, mounted on aluminium frames. All panels, that can be separately tilted to 15 ° for better orientation, use polycrystalline silver color silicon cells.
Source: ©RPBW; Thesan-Savio group
| Project | "MuSe" Science Museum |   |
| Location | Trento (I) | |
| Latitude | 46° 04' | |
| Completion year |
2013 | |
| Architect | Renzo Piano Building Workshop | |
| Typology | Museum | |
| Catégorie | New | |
| Surrounding | Urban | |
| Technology | Multicrystalline | |
| Power installed |
312 kWp (MuSe+Le Albere) | |
| Orientation | - | |
| PV-Module |
Tedlar glaspaneel hohe effizienz | |
| Dimensions | 5000 m2 (MuSe+Le Albere) | |
| Transparency |
Opaque |
