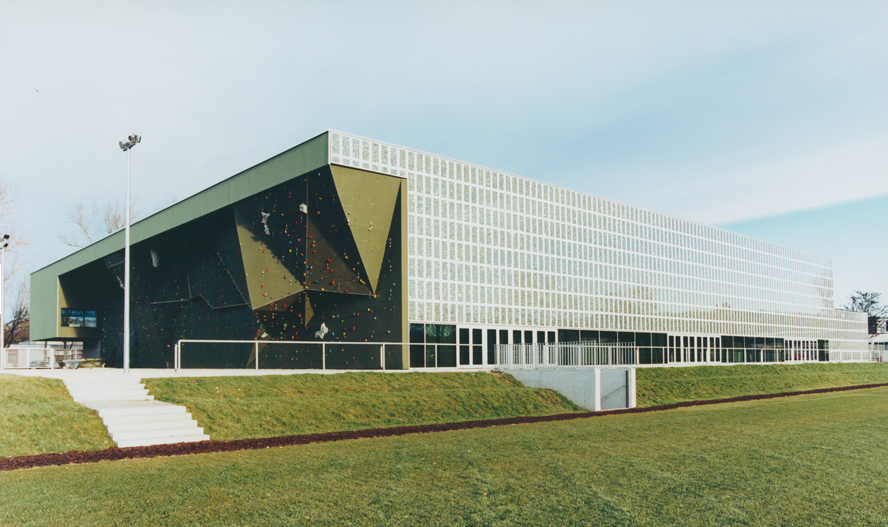

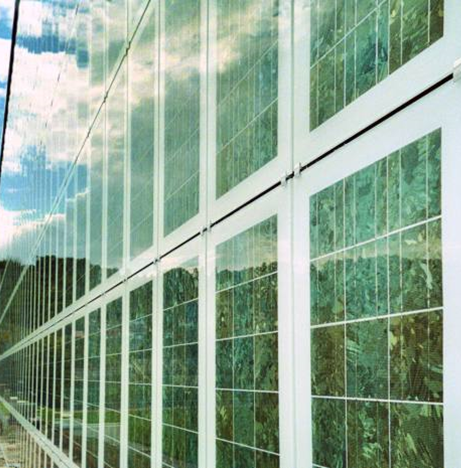

The multi-functional sports hall is characterized by four different facades that are an integral part of the building's concept. A modern climbing wall forms the north-western facade, facilities for streetball, skating and skateboarding are placed along the south-eastern exterior wall. The south-western wall is taken up by photovoltaic elements. PV wall, thanks to the special modules composed by green coloured crystallin cells onto a white background,fixed by a point fixing system, appears well integrate with the surrounding natural environment. The Paul Horn-Arena has been awarded with the Hugo - Häring - Prize in 2009.
Source:SunTechnics Solartechnik, Daisuke Komuro, Allman & Sattler &Wappner Architekten
| Project | Paul Horn Arena |  |
| Location | Tübingen (D) | |
| Latitude | 48° 31' | |
| Completion year |
2004 | |
| Architect | Allman & Sattler&Wappner Architekten | |
| Type | Sport | |
| Category | new | |
| Surroundings | Landscape | |
| Technology | Multicrystalline | |
| Installed power |
43.7 kWp | |
| Orientation | South-west | |
| PV module |
Sunways solar cells | |
| Dimensions | 530 m2 | |
| Transparency |
opaque (emerald coloured) |
